3D Scanning of Atrium installation area
DETAILS

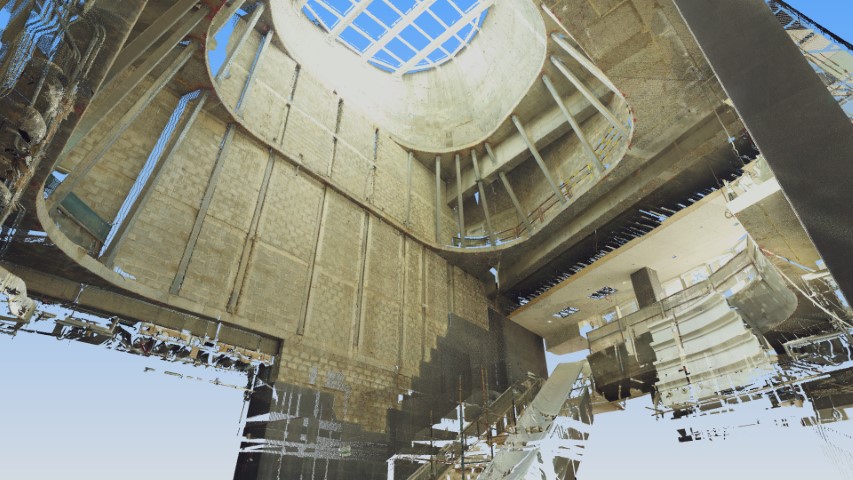

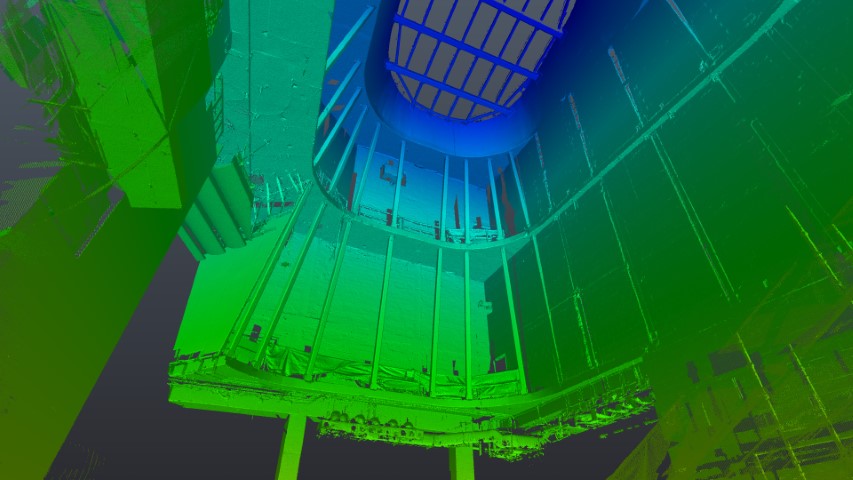

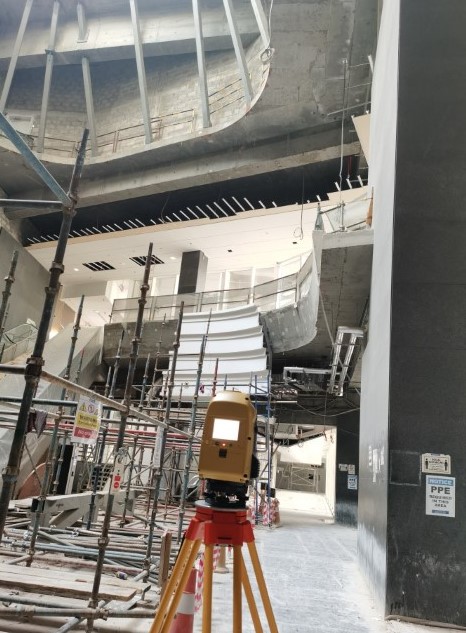

3D static scanning of irregularly shaped Atrium vicinity in order to create a BIM to coordinate the design and installation of irregularly shaped GRP cladding. The cladding will be fixed to multiple layers of concrete slaps and occasionally inclined steel tubes. The location of fixing surface and the 3D position of the atrium cladding had to be accurately determined in the BIM in order to fabricate and install custom steel support.
DELIVERABLES

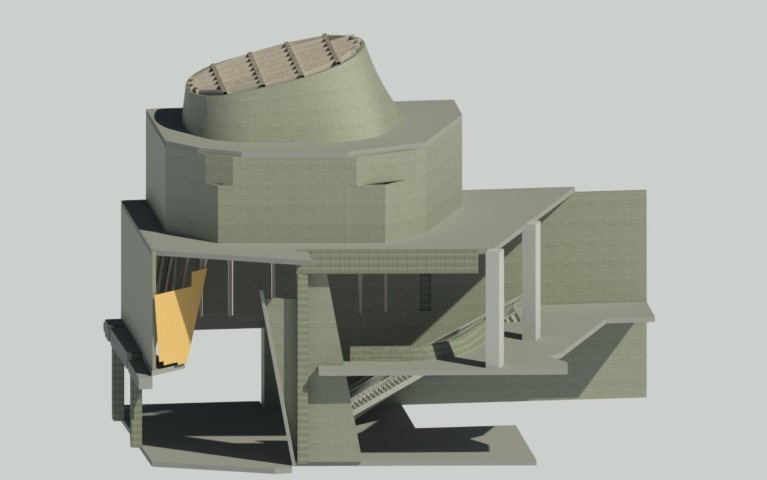

Federated 3D BIM generated in REVIT
OWNER
Baytur – Emesa
LOCATION
King Abdullah Financial District (KAFD) Parcel 5.05
